BCP Motor Winding Failure: Warning Signs

Direct Answer

The earliest warning signs of BCP motor winding failure include falling insulation resistance, increasing phase-current imbalance, abnormal winding temperature, repeated earth-fault alarms, changes in polarization index, and deterioration in surge-comparison results. A single test is not conclusive; trends taken at comparable temperature and moisture conditions are more useful.

Symptoms and Likely Causes

• Low or falling insulation resistance: moisture ingress, contaminated insulation, can-liner leakage, or thermal ageing.
• Unequal phase resistance or current: damaged joints, shorted turns, supply imbalance, or winding asymmetry.
• Hot spots or abnormal temperature rise: cooling-flow restriction, overload, turn insulation damage, or poor coil connection.
• Intermittent earth fault: insulation cracks, lead damage, conductive contamination, or water entering the stator space.
• Burnt odor or discolored end turns: sustained overheating or localized connection failure.

Inspection and Diagnostic Process

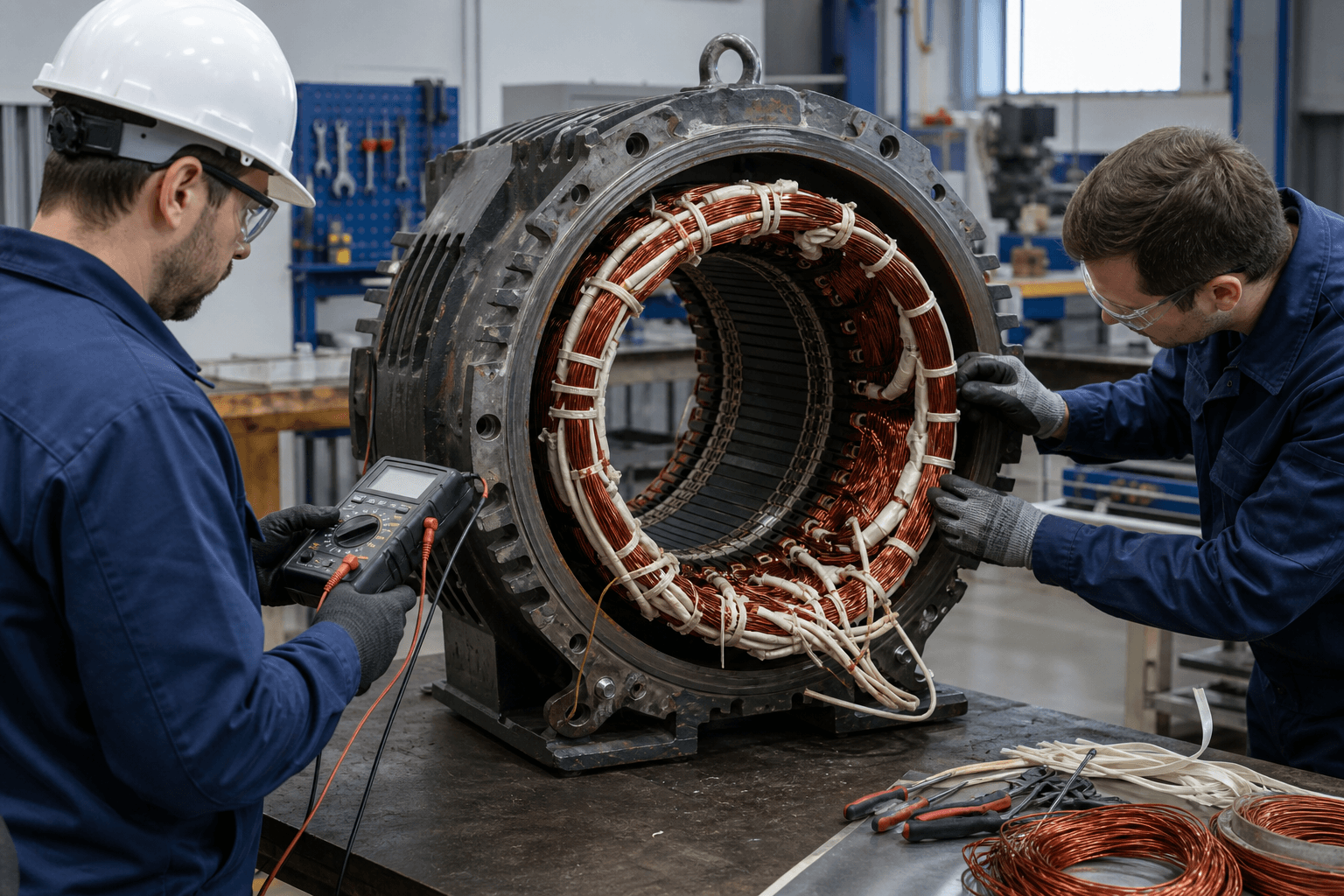

Record insulation resistance with winding temperature and correct readings to a common reference temperature where the applicable procedure requires it. Compare phase resistance, polarization index, motor current, protection-relay history, and temperature trends. Surge comparison can help identify turn-to-turn weakness, while dielectric testing should only be performed using an approved voltage and procedure because excessive test stress can damage aged insulation.

Before condemning the winding, verify cable condition, terminal joints, supply voltage balance, instrument accuracy, and moisture conditions. For canned motors, inspect the liner and pressure boundary because a winding fault may be the consequence of liner damage rather than the original failure.

Repair Options

• Dry and clean a winding only after identifying and stopping the ingress source.
• Repair leads or joints when damage is localized and the remaining insulation is serviceable.
• Rewind the stator when turn insulation, multiple coils, or the insulation system has deteriorated broadly.
• Replace or repair the can liner and pressure-test it before final motor assembly.
• Complete phase resistance, insulation, surge, and approved dielectric tests before commissioning.

DEI VOX provides diagnosis and motor work as part of its boiler circulation pump repair services in India.

FAQ

Does a low megohm reading always mean the winding must be rewound?

No. Temperature, moisture, contamination, cables, and test setup affect the reading. The cause and trend must be established before choosing repair or rewind.

Can a damaged can liner cause winding failure?

Yes. A pinhole or crack can allow process fluid into the stator area, rapidly reducing insulation integrity and causing an earth fault.
