Submersible Pump: Repair & Rewinding

DEI VOX India Pvt. Ltd. provides comprehensive repair, upgrading, and motor rewinding services for industrial submersible pumping motor units across India. Combining BCP-grade engineering discipline with a dedicated submersible pump service capability, DEI VOX delivers reliable, ISO-certified solutions for plant operators who cannot afford unplanned pump downtime.

What is a Submersible Pumping Motor Unit?

A submersible pumping motor unit integrates a close-coupled motor and pump into a single waterproof assembly designed to operate fully immersed in the pumped fluid. This configuration eliminates the need for priming, reduces installation footprint, and is inherently silent — advantages that make submersible units the preferred choice for many industrial dewatering, cooling water, process water, and auxiliary applications.

Industrial submersible pumps range from small drainage units to high-power deep-well turbine pumps handling thousands of cubic metres per hour. In power plant applications, submersible units are often used in cooling water intake sumps, boiler make-up water systems, and emergency condensate pumping — where reliability is safety-critical.

Unlike standard surface pumps, submersible motor units require specialised repair expertise because the motor and hydraulic components are intimately integrated, moisture sealing is critical, and field disassembly is constrained by the unit's geometry. DEI VOX engineers are trained in the complete repair workflow for submersible pump motor units of all major manufacturers.

How Submersible Pumps Work

In a typical submersible pumping motor unit, the electric motor is positioned at the bottom of the assembly (or at top, depending on design), driving the pump impeller(s) through a close-coupled shaft arrangement. The motor is hermetically sealed against ingress of the pumped fluid, either by a water-filled design (where internal water provides bearing lubrication and cooling) or by an oil-filled design with mechanical shaft seals.

Centrifugal impellers — single-stage for lower heads, multi-stage for deep borehole or high-head applications — convert motor shaft power into fluid pressure and flow. In deep-well turbine configurations, the pump bowl assembly contains multiple impeller stages stacked on a common shaft, capable of generating heads of several hundred metres.

Applications of Industrial Submersible Pumps

• Power plant cooling water intake sumps and condensate systems
• Industrial process water supply from open sumps and reservoirs
• Mine and tunnel dewatering in construction and mining industries
• Municipal water supply and sewage pumping
• Agricultural deep borehole irrigation
• Offshore platform and marine bilge pumping
• Emergency flood water removal from basements and industrial pits

Common Failure Modes in Submersible Pumps

Mechanical Seal Failure

Mechanical shaft seals are the most frequent failure point in oil-filled submersible motors. Seal face wear, spring fatigue, or secondary seal (O-ring) degradation allows water to enter the motor housing, leading to rapid winding insulation failure. DEI VOX replaces seals with equivalent or upgraded seal face material pairings (silicon carbide, tungsten carbide, carbon) to match the specific fluid and duty conditions.

Winding Insulation Failure

Motor winding insulation degrades over time due to thermal cycling, moisture ingress, and voltage transients. DEI VOX performs complete stator rewinding using new insulation materials rated to the motor's original class (typically F or H), verified by insulation resistance, hi-pot, and surge comparison testing.

Bearing Failure

Radial and thrust bearings in submersible motors are subject to accelerated wear when abrasive particles are present in the pumped fluid, or when the pump operates at low flow rates (low-flow cavitation). DEI VOX replaces bearings with OEM-equivalent or superior-specification units and addresses root causes such as worn impellers that increase hydraulic radial loads.

Impeller Wear and Cavitation Damage

High-velocity flow and sand abrasion erode impeller vane profiles, reducing pump head and efficiency. Cavitation — vapour bubble collapse on impeller surfaces — causes pitting damage that accelerates wear and generates severe vibration. DEI VOX restores impeller geometry using hard-facing and precision grinding, or manufactures replacement impellers where damage is beyond economic repair.

DEI VOX Submersible Pump Services

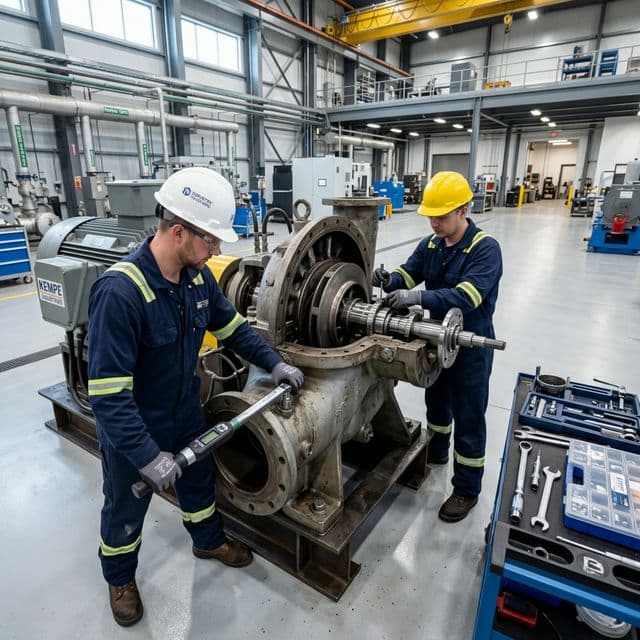

Complete Overhaul

Full strip-down, component inspection, and restoration of pump and motor to original or improved specification. Includes impeller, wear ring, bearing, seal, and winding assessment with component replacement as required.

Pump Upgrading

When plant conditions change — flow demand increases, head requirements are revised, or energy efficiency targets are imposed — DEI VOX engineers assess and execute submersible pump upgrades. This may include hydraulic re-rating, impeller replacement with a modified design, motor power upgrade, or conversion to improved seal technology.

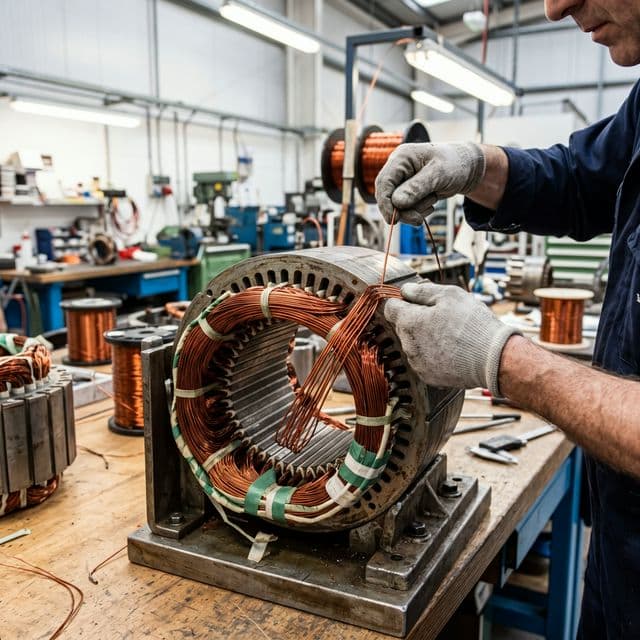

Motor Rewinding

Rewinding is often the most cost-effective intervention when motor winding insulation has failed. DEI VOX completes rewinds using certified magnet wire and insulation systems, with final testing to IEC 60034 standards.

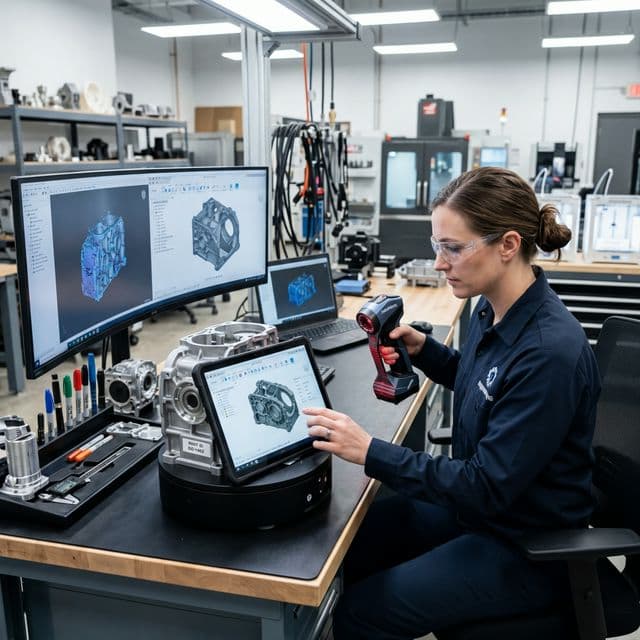

Spare Parts & Reverse Engineering

For older submersible pump models where OEM spare parts are unavailable, DEI VOX produces precision-dimensioned replacement components through reverse engineering — from impellers and wear rings to bearing housings and seal carriers.

Maintenance Best Practices for Submersible Pumps

• Periodic insulation resistance checks without removing the pump from service
• Monitoring motor current draw for gradual increases indicating hydraulic or mechanical issues
• Vibration analysis at pump column flange (for accessible installations)
• Oil sampling (oil-filled motors) to detect water ingress before winding damage occurs
• Scheduled annual or biannual pulling and inspection for critical-duty units
• Plant water quality control to reduce abrasive and scale-forming tendencies

Why Choose DEI VOX for Submersible Pump Repair

• ISO 9001:2015, 14001:2015 & 45001:2018 certified service quality
• In-house motor rewinding, machining, and hydraulic testing facilities
• Multi-OEM repair experience — Grundfos, KSB, Xylem, Kirloskar, BHEL and others
• Reverse engineering for discontinued and hard-to-source components
• 24/7 emergency mobilisation across India
• Transparent condition reporting with photographic documentation at each repair stage
